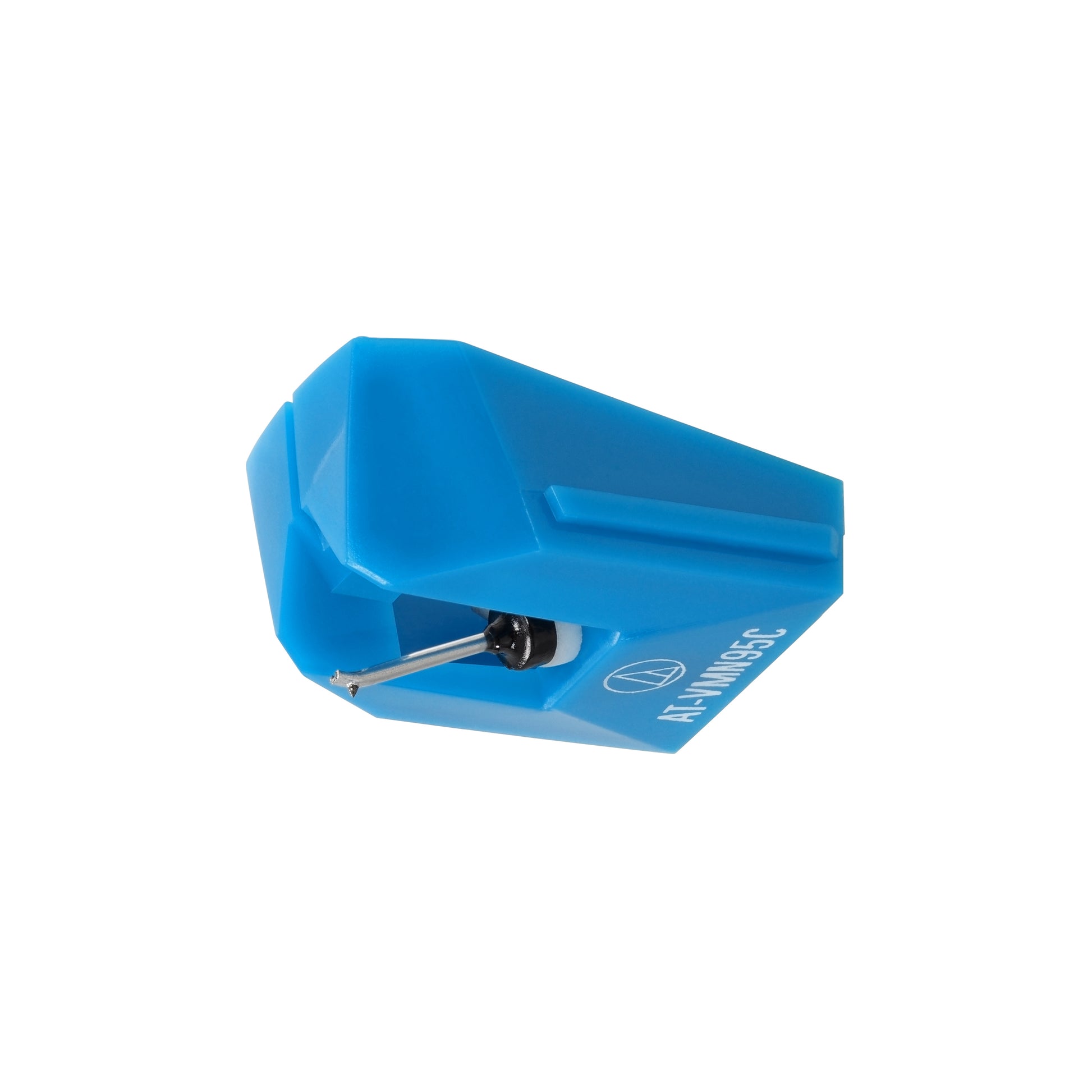

Audio Technica AT-VMN95C Moving Magnet Stylus

Audio Technica AT-VMN95C Moving Magnet Stylus

VM95 Series Conical replacement stylus

Regular price £19.00 GBP
Regular price Sale price £19.00 GBP
Sale Sold out

Description

VM95 Series Conical replacement stylus

  • Aluminium cantilever
  • Conical stylus
  • Bonded Round Shank

VM95 Series - Styli compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

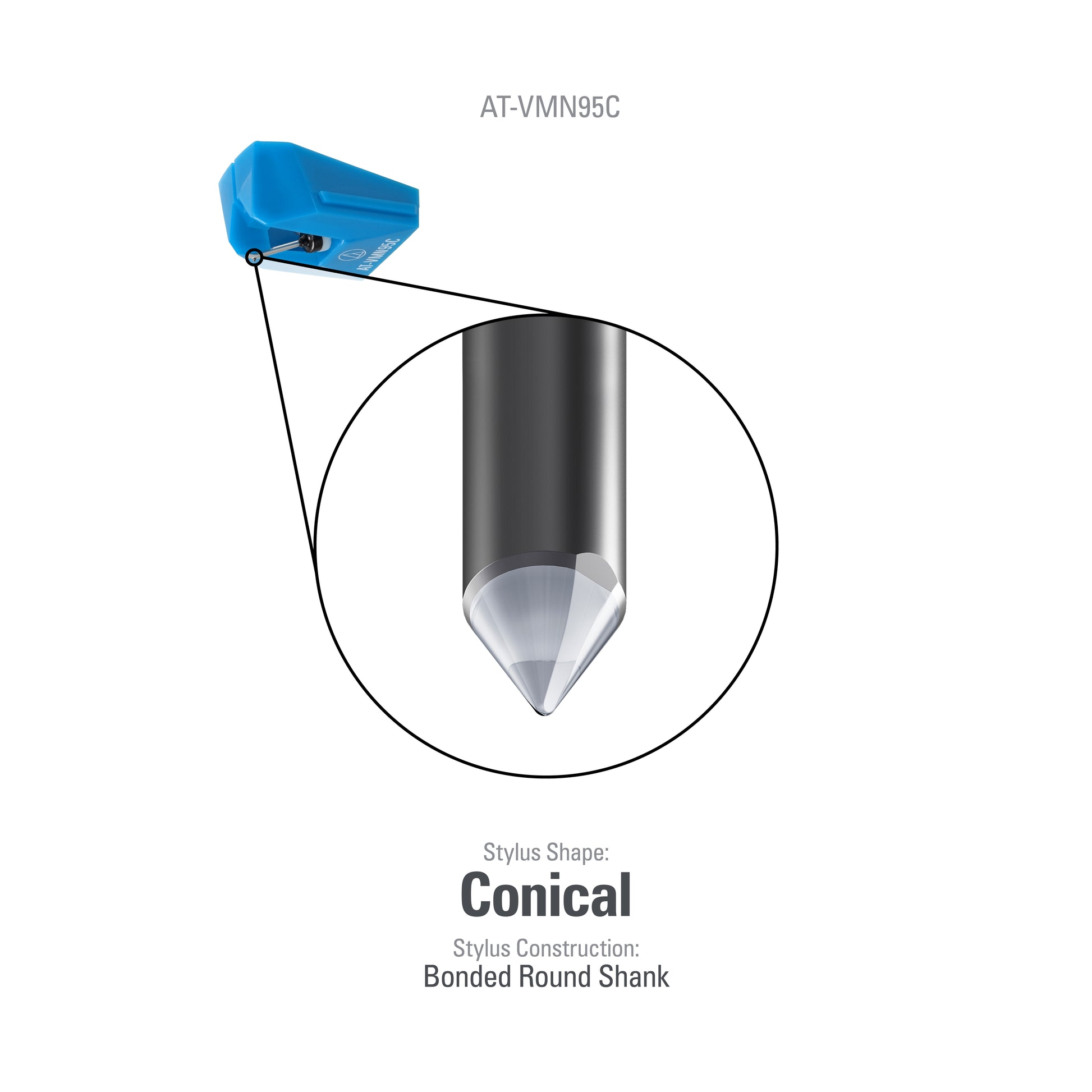

Conical Bonded Stylus
The benefit of conical styli, even if the cartridge is "lean", is the ball surface of the stylus touches the groove of vinyl records precisely.

Specifications

Frequency Response

20 - 20,000 Hz

Channel Separation

18 dB (1 kHz)

Vertical Tracking Angle

23°

Stylus Construction

Bonded Round Shank

Recommended Load Impedance

47,000 ohms

Coil Impedance

3.3 kohms (1 kHz)

DC Resistance

485 ohms

Coil Inductance

550 mH (1 kHz)

Output Voltage

4.0 mV (@ 1 kHz, 5 cm/sec)

Output Channel Balance

2.5 dB (1 kHz)

Stylus Shape

Conical

Cantilever

Aluminium Pipe

Static Compliance

17 x 10 – 6 cm / dyne

Dynamic Compliance

6.5 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centres

Cartridge Weight

6.1g

Dimensions

17.2 x 18.9 x 28.3 ( H x W x D mm)

Accessories Included

Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers

Model

AT-VM95C

Recommended Load Capacitance

100-200 pF

Replacement Stylus

AT-VMN95C

Stylus Size

0.6 mil

Type

VM Stereo Dual Magnet

Wire Used for Coil

T.P. Copper
