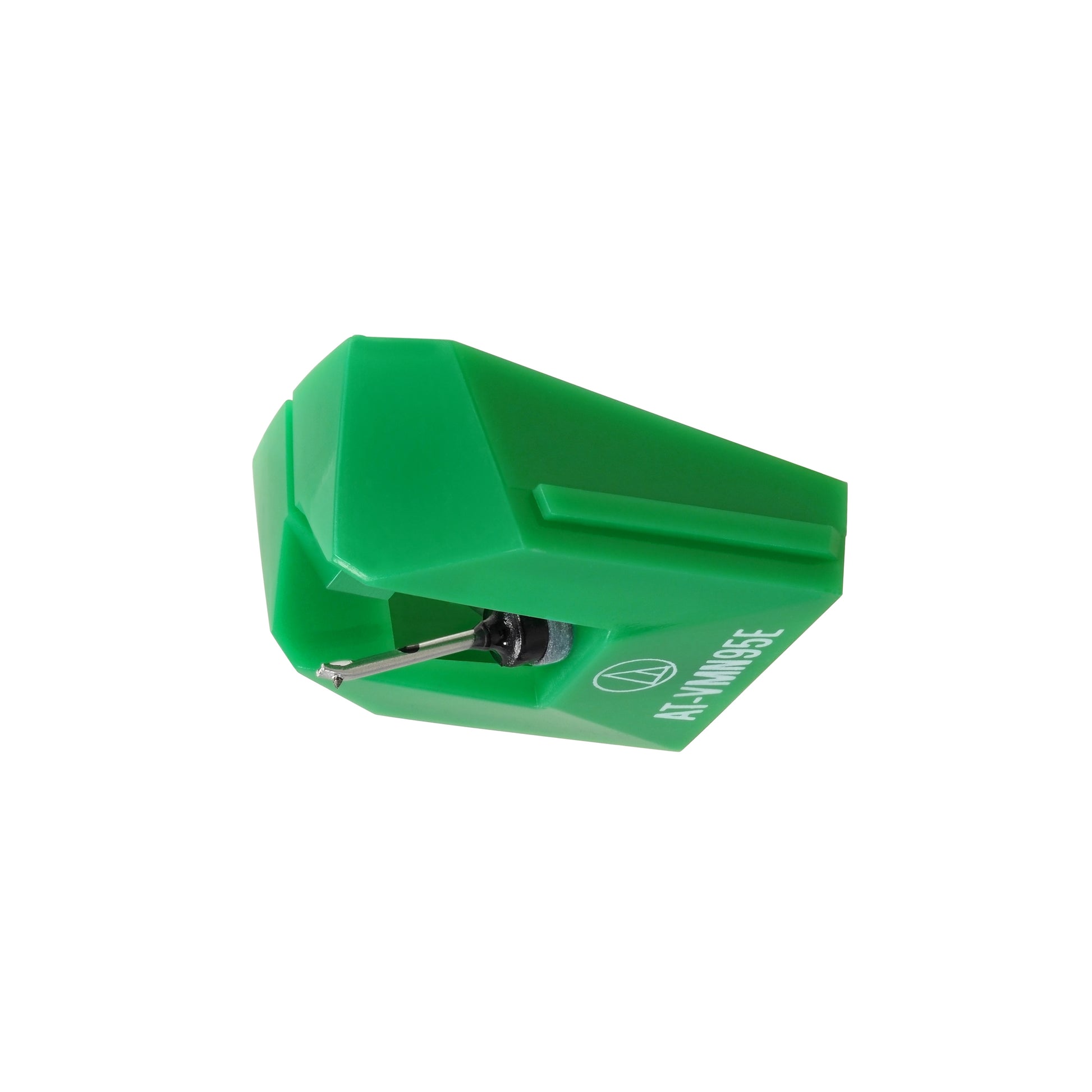

Audio Technica AT-VMN95E Moving Magnet Stylus

Audio Technica AT-VMN95E Moving Magnet Stylus

VM95 Series Elliptical replacement stylus

Regular price £29.99 GBP
Regular price Sale price £29.99 GBP
Sale Sold out

Description

VM95 Series Elliptical replacement stylus

  • Aluminium cantilever

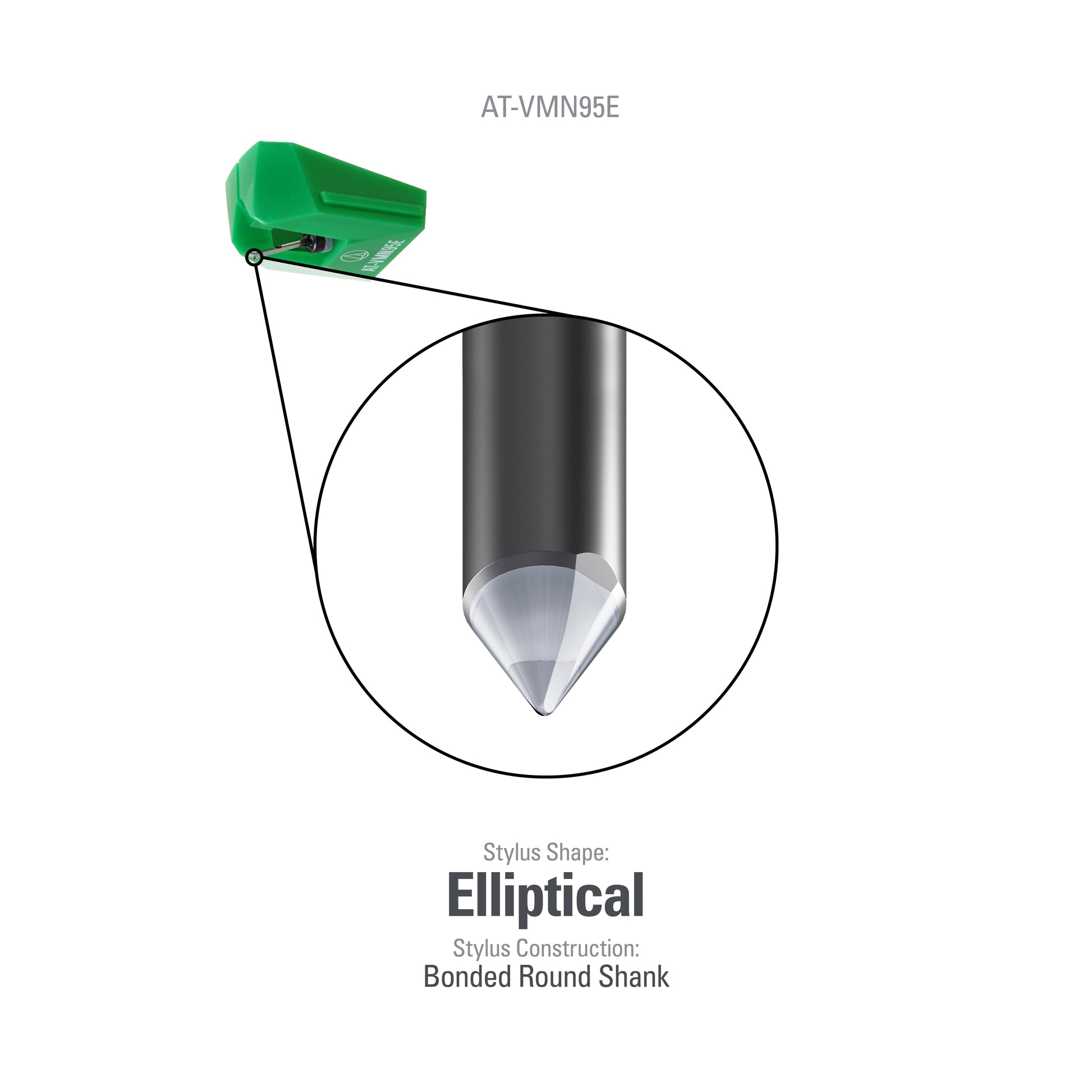

  • Elliptical stylus
  • Bonded Round Shank

VM95 Series - Styli compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

Specifications

Frequency Response

20 - 22,000 Hz

Channel Separation

20 dB (1 kHz)

Vertical Tracking Angle

23°

Stylus Construction

Bonded Round Shank

Recommended Load Impedance

47,000 ohms

Coil Impedance

3.3 kohms (1 kHz)

DC Resistance

485 ohms

Coil Inductance

550 mH (1 kHz)

Output Voltage

4.0 mV (@ 1 kHz, 5 cm/sec)

Output Channel Balance

2.0 dB (1 kHz)

Stylus Shape

Elliptical

Cantilever

Aluminium Pipe

Static Compliance

17 x 10 – 6 cm / dyne

Dynamic Compliance

7 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centres

Cartridge Weight

6.1g

Dimensions

17.2 x 18.9 x 28.3 ( H x W x D mm)

Accessories Included

Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers

Model

AT-VM95E

Recommended Load Capacitance

100-200 pF

Replacement Stylus

AT-VMN95E

Stylus Size

0.3 x 0.7 mil

Type

VM Stereo Dual Magnet

Wire Used for Coil

T.P. Copper
